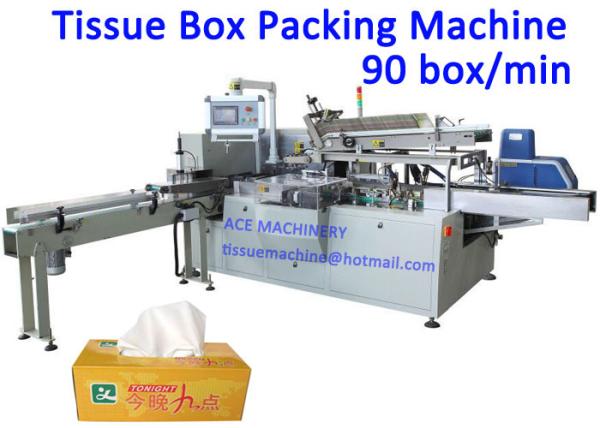

Automatic tissue paper packing machine for facial tissue paper box 100 box / min
Application of this tissue paper packing machine:
Application
1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation clearer and more convenient. With high automation degree, the machine is more user-friendly.
3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
6. Change of specifications does not need change of molds, but can be realized through adjustment.
7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.
Main features:
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line.
4. Step-less speed regulation, packing speed and length of film can be adjustable.
5. High automation, high specialization, high efficiency and but less trouble.
6. Flexible packing range, different sizes can be changed easily.
7. Add pneumatic left and right rectifying device, up and down reshaper or avoid irregular package such as parallelogram and trapezoid, make the finished product more regular and beautiful.
Technical parameter:
| Paper quality of carton: | 300-400g/m3 |
| Maximum packing specification: | L240mm×W120mm×H100mm |
| Minimum packing specification: | L110mm×W110mm×H30mm |
| Packing speed: | 80-100 boxes/min (higher speed model available.) |
| Power supply type: | (3phase 4wire) 380V 50Hz or 220v 60hz |
| Hot melt machine power | 2.32KW |
| Motor power | 2.74KW |
| Total power | 5.1KW |
| Machine noise | ≤80dB |
| Air supply | 0.5-0.8 Mpa |
| Air consumption | 120-160L/min |
| Machine dimension | Main machine L3250×W1650×H1800mm Conveyors: L2000mm×W180mm x H850mm |
| Machine weight | 2500Kg |
Component:
electrical components for facial tissue packing machine | PLC | Siemens or Mitsubishi |
| HMI | Weinview (Taiwan) |
| Inverter | DELTA (Taiwan) |
| Relays | Schneider (France) + Omron (Japan) |
| Sensors | Omron (Japan) or other international brands. |

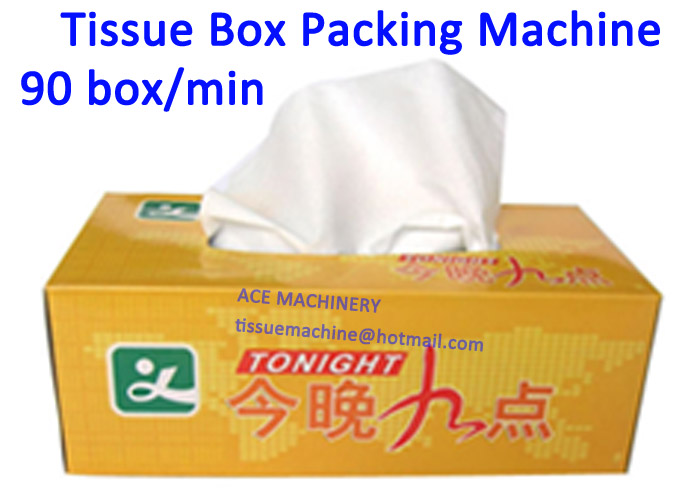

Sample of finished product by fully-automatic tissue paper packing machine.
